CSF BMW F3X / F2X (N55) Race-Spec Oil Cooler

CSF BMW F3X / F2X (N55) Race-Spec Oil Cooler brings CSF’s application-specific cooling engineering to the vehicles listed below. This oil cooler is designed for enthusiasts who want dependable heat management, durable construction, and fitment tailored to the intended platform.

Fitment Summary

Fits select 2012–2016 BMW 335i, 335i GT xDrive, 335i xDrive, 435i, 435i Gran Coupe, 435i xDrive, 435i xDrive Gran Coupe, ActiveHybrid 3, and 2 more models applications. Verify chassis, trim, engine, transmission, and cooler position in the detailed application table.

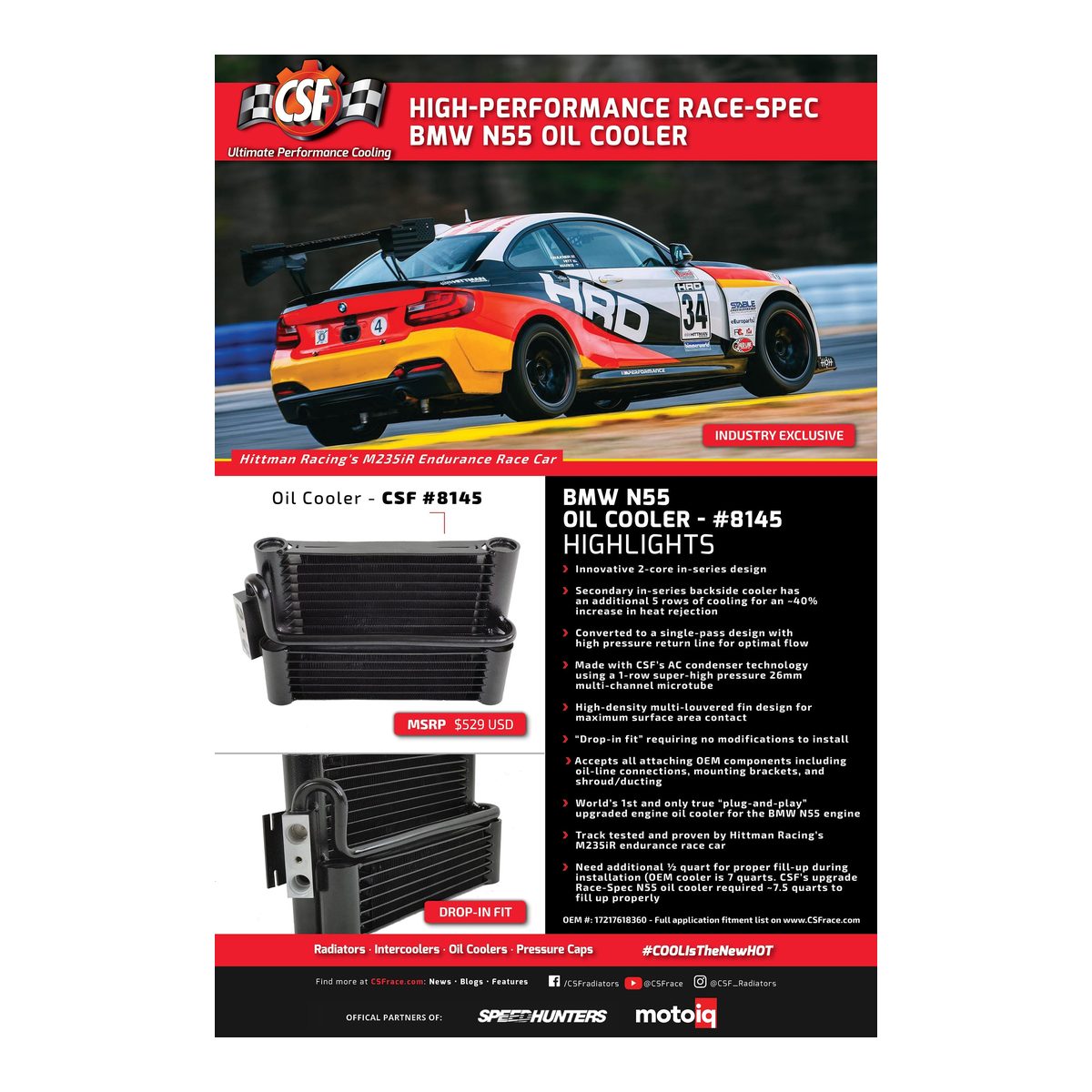

Features

• Innovative 2-Core In-Series System
• Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a 40% Increase in Heat Rejection
• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
• High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
• Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
• "Drop-In Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
• World's 1st and Only True "Plug-And-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine
• Track Tested and Proven by Hittman Racing's M235iR Endurance Race Car
• Requires Additional Half Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF's Upgrade Race-Spec N55 Oil Cooler: 7.5 Quarts)

Detailed Applications

OEM Part Numbers

• BMW: 17 21 7 618 360
• BMW: 17-21-7-618-360
• BMW: 17217618360
• BMW: 17 21 7 628 056
• BMW: 17-21-7-628-056
• BMW: 17217628056

Manufacturer: CSF  |  CSF Part Number: 8145

Professional installation is recommended. Confirm vehicle configuration and installation position before ordering.
